DESCRIPTION

Overview

Basic Info.

Model NO.	87993
Technic	Hot Forged
Appearance	Galvanized
Transport Package	Well Packed by Cartons and Wooden Box
Specification	3/4" to 1-1/2"
Trademark	PAISHUN or OEM
Origin	Zhejiang, China
HS Code	73079900
Production Capacity	5, 000 PCS/Day

Product Description

Product Description

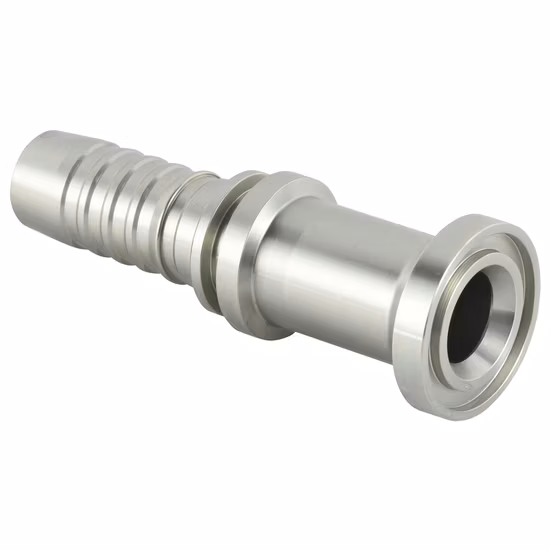

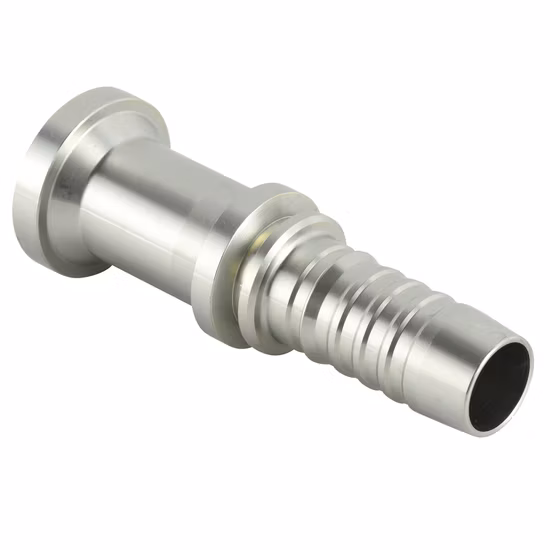

1" Super High Pressure Sae A Flange
All of our hydraulic fittings are produced by advanced CNC machines.
Standard: Yonghua
Technology: Hot forging
Material: carbon steel 45# or stainless steel 304/316
Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
It passes a 96 h salt spray test in accordance with ASTM B 117.
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation and other industries.

Product Parameters

90 DEGREE SAE FLANGE 9000 PSI (interlock hose fitting)

Part No.	Thread E	Hose Bore		Dimensions
		DN	DASH	A	C	D	H	L
87993-12-12	3/4"	20	12	75	41.3	32	71.5	14.3
87993-16-12	1"	20	12	75	47.6	38	73	14.3
87993-16-16	1"	25	16	88.9	47.6	38	78.5	14.3
87993-20-16	1.1/4"	25	16	88.9	54	43	79.5	14.3
87993-20-20	1.1/4"	32	20	105.8	54	43	90.5	14.3
87993-24-20	1.1/2"	32	20	105.8	63.5	51	91.5	14.3
87993-24-24	1.1/2"	40	24	124.2	63.5	51	105	14.3

Detailed Photos

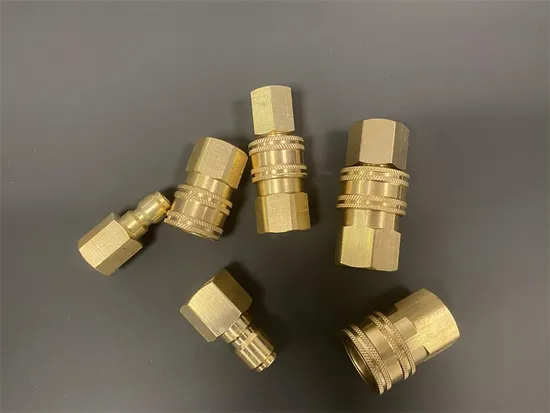

Other hydraulic fittings:

Packaging & Shipping

Packageing: Well packed by cartons and free fumigating wooden box.

Strong Packaging of Hydraulic Hose Fitting from PAISHUN
All fittings are with PVC plastic caps and plugs to protect against Dust.

All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.

In order to guarantee that even in worst sea / maritime weather/transport conditions, the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.

Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm

Usually 42 cartons can be packed in a wooden box.

Surely we can be customized the measure according to your request.

Workshop

Workshop and Auto CNC Cutting Machine
